Ice Cream Freezer

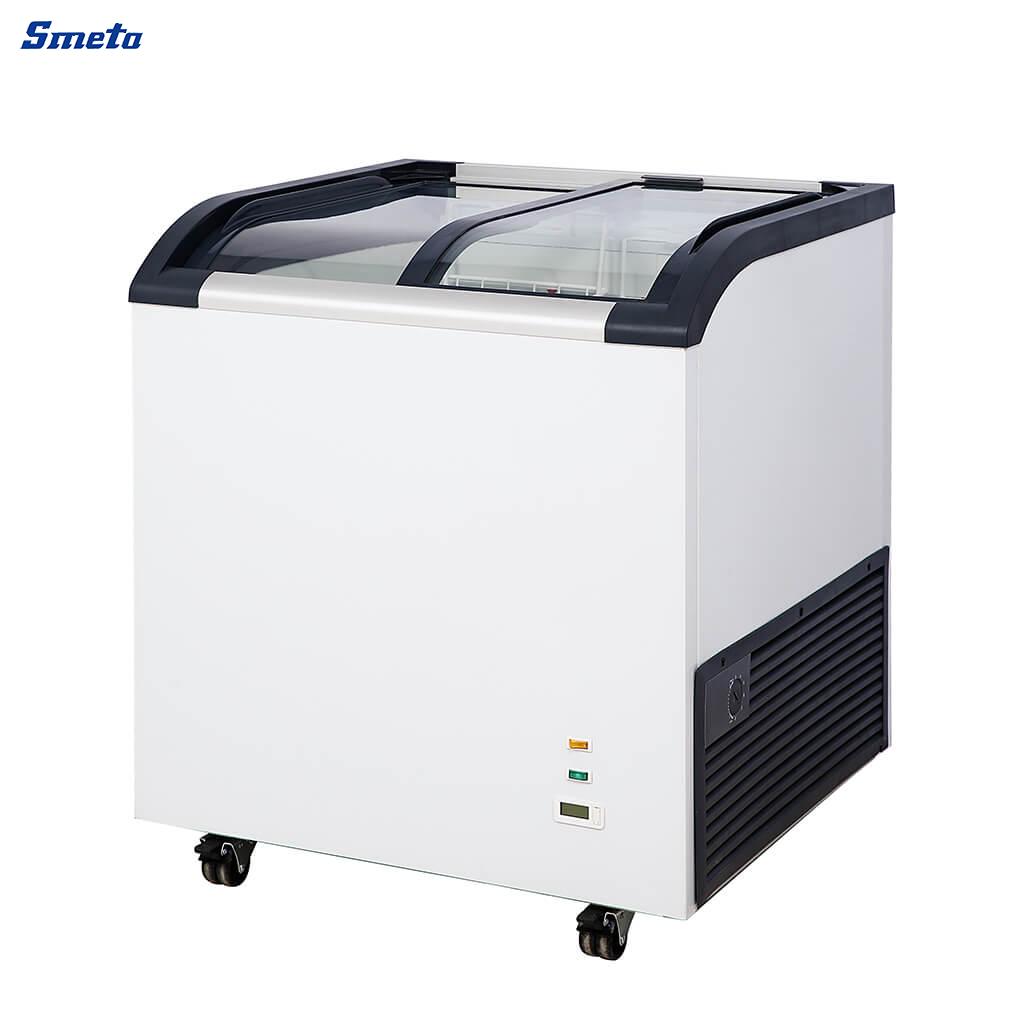

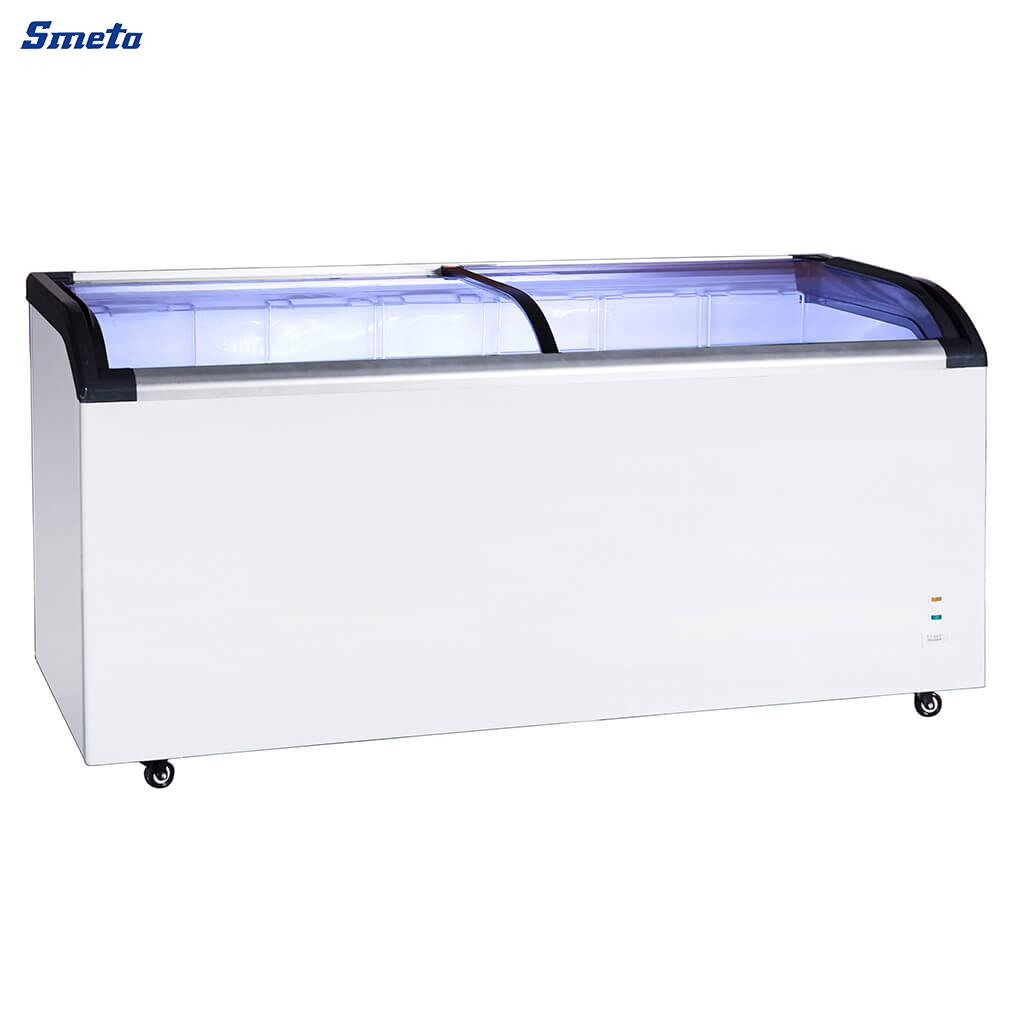

163~615L Commercial Ice Cream Display Freezer

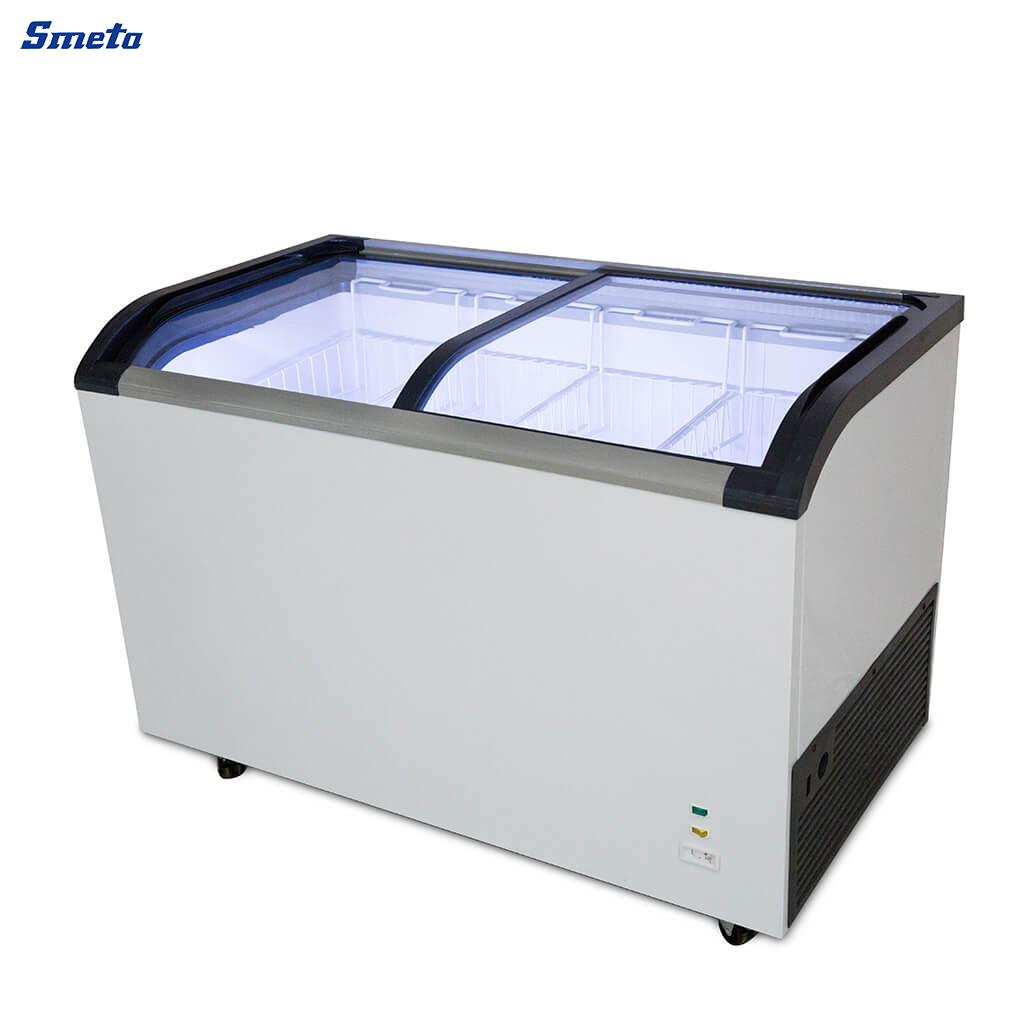

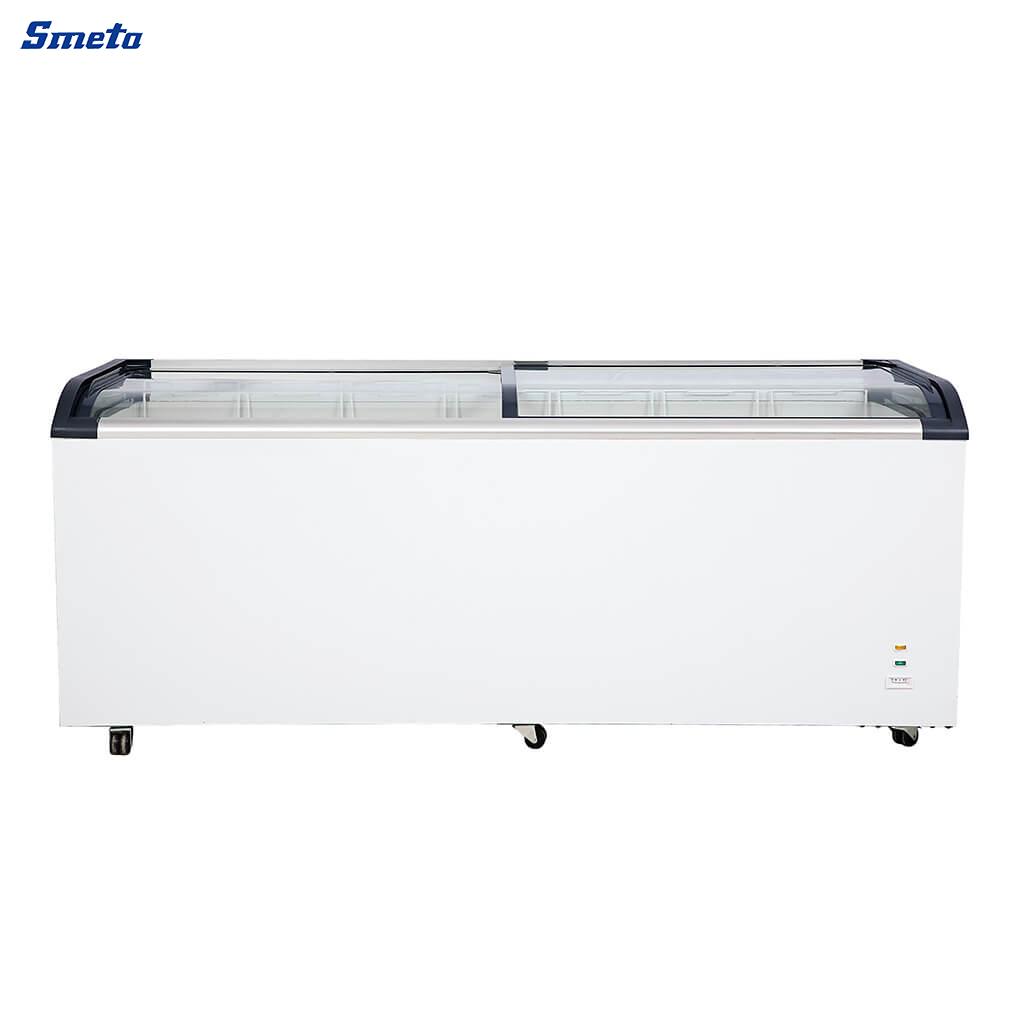

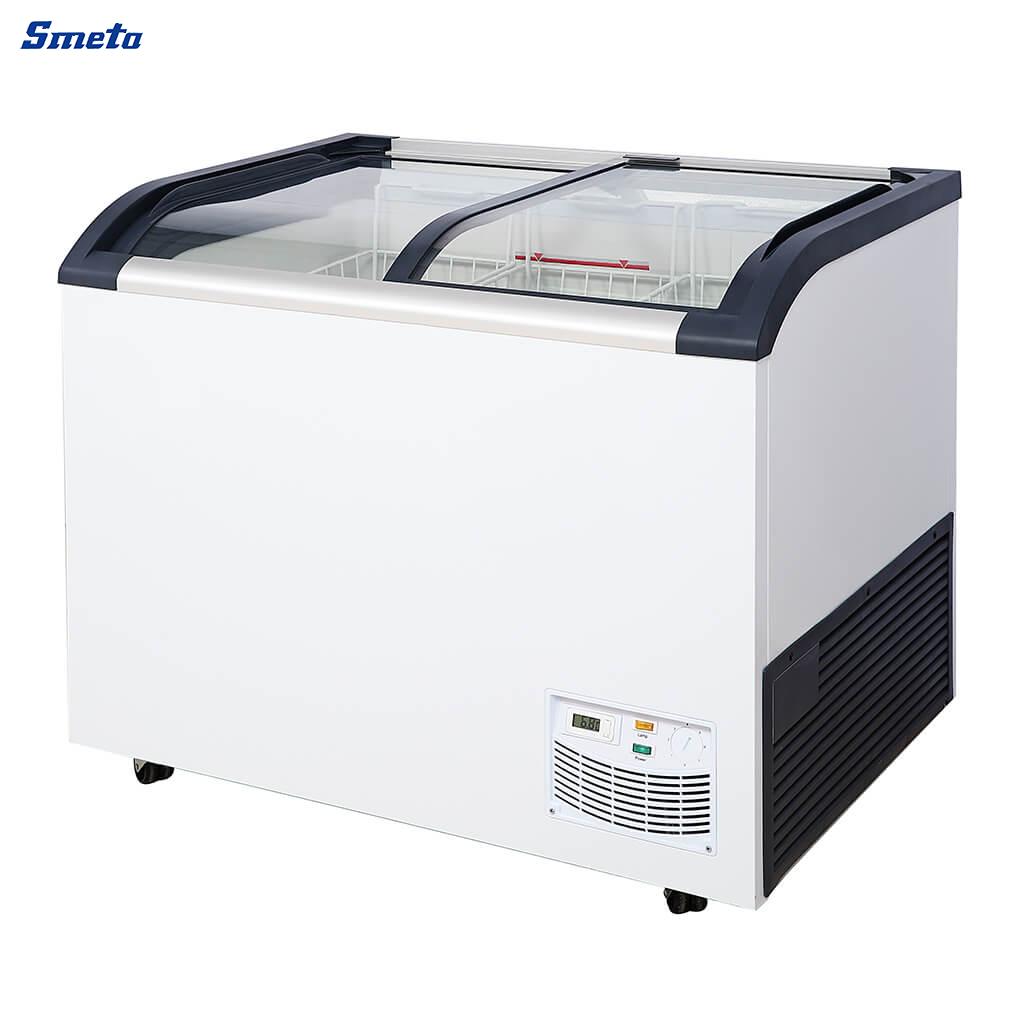

Model : TDH-220W4/TDH-320W4/TDH-420W4/TDH-520W4/TDH-620W4/TDH-720W4
Color : White

Smeta appliances - ce certification icon
rohs certificates | Smeta Electric Appliances

· High COP compressor & Non-CFC refrigerant;

· Static cooling system;

· Mechanical temperature control;

· Free from maintenance ventilated motor fan for condenser&compressor;

· 2 pieces single curved tempered glass lids with low-E, leftand right sliding;

· Standard interior LED illumination;

· White precoated galvanized steel exterior liner;

· White precoated aluminum interior liner;

· Integrated ABS+ aluminum alloy cabinet frame

Advantage

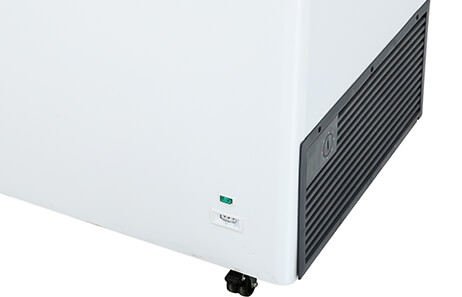

  • Smeta display freezer detail
    01

    Efficient Performance with Low Maintenance

    The Smeta commercial ice cream display freezer is built for businesses requiring dependable, low-maintenance equipment. With a high COP compressor and a ventilated motor fan that requires no maintenance, it reduces long-term upkeep costs, ensuring efficient cooling with minimal interruptions.

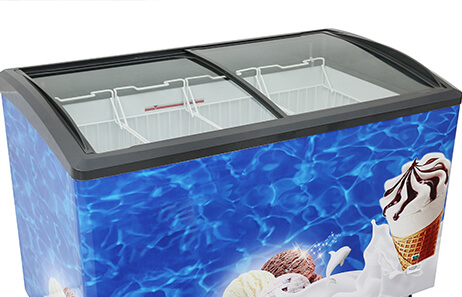

  • Enhanced Product Display
    02

    Enhanced Product Display

    Designed to attract customers, the freezer features two single-curved tempered glass lids with a low-E coating that slides easily from side to side. This maximizes product visibility while maintaining temperature control, making it an excellent choice for display purposes in retail environments.

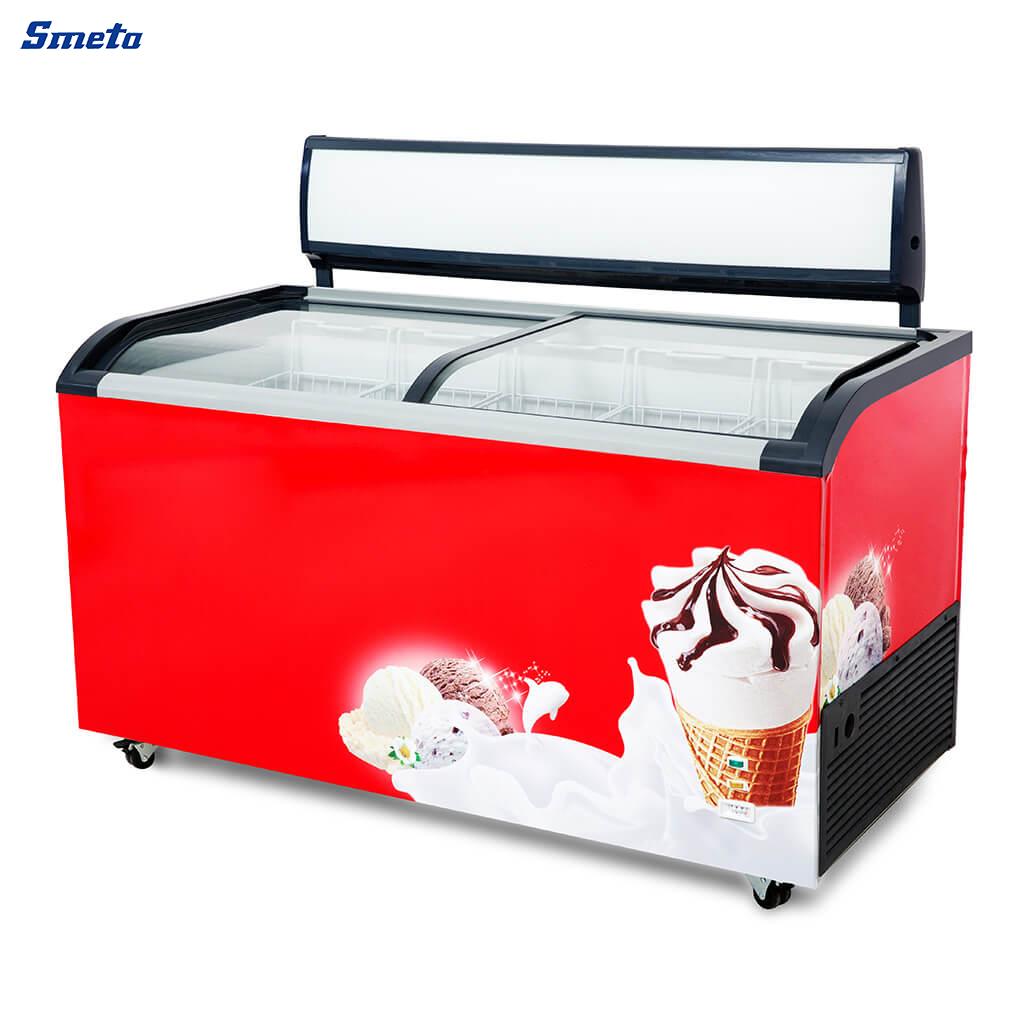

  • Smeta ice cream display freezer TDH-520W4 With lightbox
    03

    Energy-Saving and Environmentally Friendly

    Equipped with non-CFC refrigerants, this freezer is both energy-efficient and environmentally responsible. The static cooling system and interior LED lighting ensure minimal power consumption while keeping products at the ideal temperature, which appeals to eco-conscious businesses.

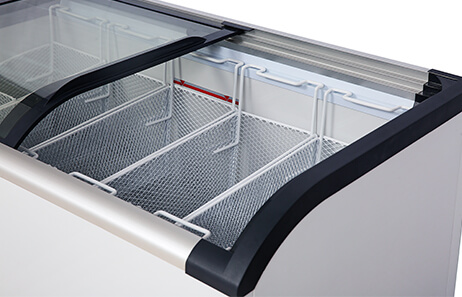

  • precoated-galvanized-steel-exterior-and-an-aluminum-interior-liner
    04

    Durable and Stylish Construction

    With a white precoated galvanized steel exterior and an aluminum interior liner, this freezer combines durability with a sleek design. The integrated ABS and aluminum alloy cabinet frame enhances durability, making it suitable for high-traffic commercial spaces that require robust, reliable equipment.

Parameter

Model TDH-220W4/TDH-320W4/TDH-420W4/TDH-520W4/TDH-620W4/TDH-720W4
Total Capacity 163/250/330/410/510/615
Capacity-NET 135/203/282/353/405/530
Product class Curve Glass Top
Refrigerant R290/110g
Temperature range ≤-18℃
Thermostat Mechanical
Net Dimension(inch) 730*675*850;1000*675*850;1250*675*850;1500*675*850;1750*675*850;2000*675*850
Packing Dimension (inch) 780*780*890;1050*780*890;1300*780*890;1550*780*890;1800*780*890;2050*780*890
Weight N (lb) 48/54;58/64;67/73;75/84;82/93;92/104
Loading Quantity(40’HQ) 134;98;80;66;56;50

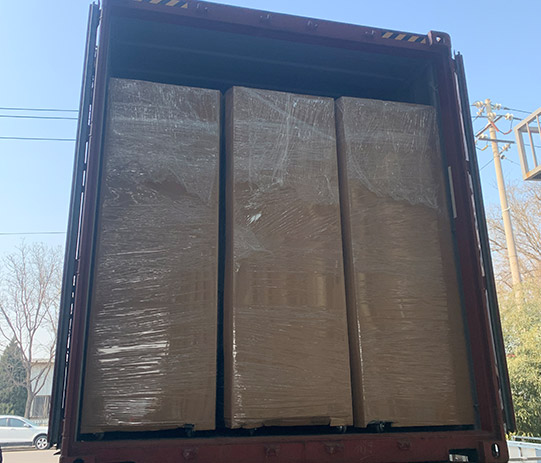

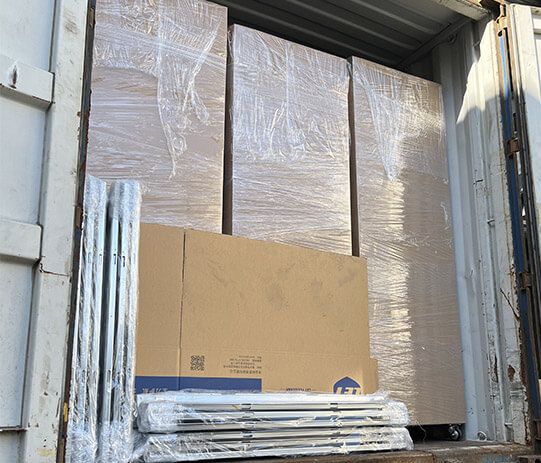

Large Cargo Photo
